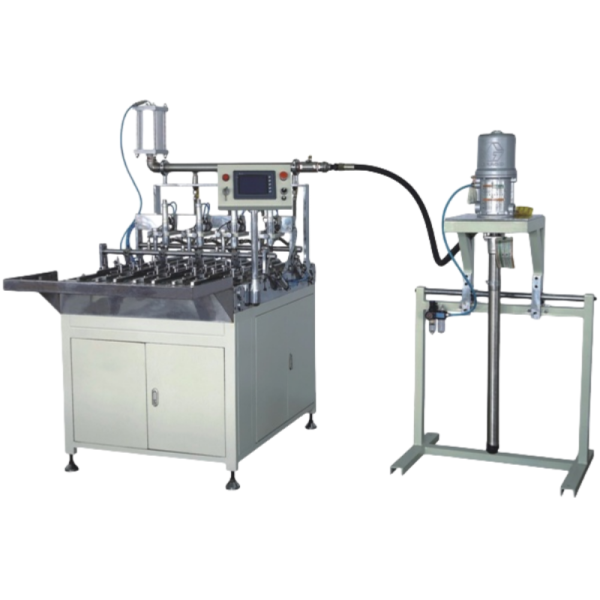

Full-auto End Cap Gluing Machine CHZJ-4
Consists
1、hot gluing machine
2、import pump
3、computer control box
Specification
| Specification | |||
| Available ID of the end cap | Φ50~Φ110mm | Glue kind | PVC(high temp.solidified adhesive) |
| Max end caps onput number/time | 4PCS/time | Power supply | 380V/50Hz |
| Speed | 30-50 pics/min | Conveyor motor power | 120 W+750W |
| Viscidity of glue | ≤50000CP | Working air pressure | 0.6MPa |
| M/C weight | 400kg | Pump air pressure | ≤0.45MPa |
| M/C size | 1600×1600×1800mm(L×W×H) | Warranty | 1 Year |
Features
1、The action of end caps loading and gluing can be regulated easily by computer control ,so it is coordinate and work normally.
2、This machine has the function of evenly gluing on the end cap of the filter.
3、This machine has excellent characteristics such as high efficiency and easy operation.
4、Adopts import gluing pump guarantee for accurately gluing.
5、Specially equipped the gluing tanks which make gluing much more evenly.
Applications
This machine is used for glue dispensing PVC on the end caps of the filter element.
