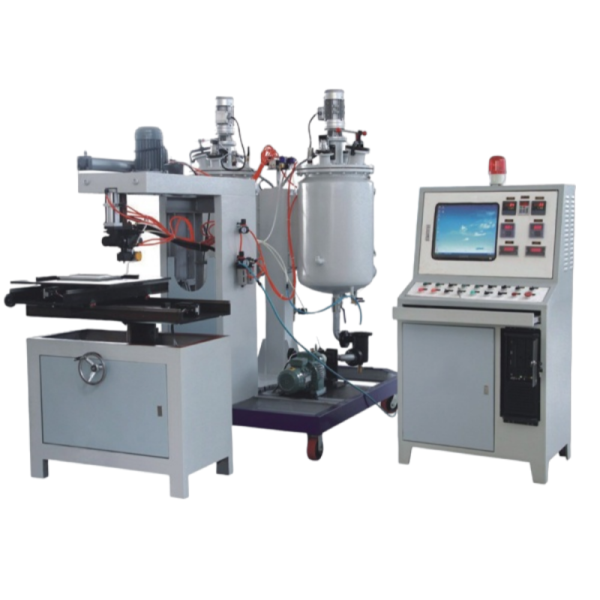

Full-auto Casting Machine On Seal Packing In Filter Element CHPU-20F

Full-auto Casting Machine On Seal Packing In Filter Element CHPU-20F

Consists
1、Bucket：staingless-sleel tank of three-layer structure with stirring and automatic constant temperature-preservation functions.
2、Pump：slow-speed, high-accurate flow-control pump with precise actuating and display devices.
3、 Nozzle：Featuring automatic three position-switching which includes pouring, flow inversing and flushing, without any advancing or lagging. The nozzle pneumatically dislocates after the pouring work and then the automatic flushing course starts through program control.
4、 Workbench：The die set is positioned on the self-governed all-around workbench afterwards round or square seal packs or seal pack with special figure would be automatically poured.
5、Control：The temperature, pressure and the extent of pouring would all be displayed digitally while controlled automatically. the workbench is operated in accordance with the requirements displayed from computer screen.
Specification

Specification
Overall output	5~15g/s	Maximum size on quadric automatic ladling	400×300(L×W)
design mixture ratio	A：B=100：25~35	Maximum size on circular automatic lading	Φ350mm
Automatic shift extent on the pouring nozzle after operation	450mm	Speed of travel	2-10m/min
M/C weight	1000kg	Overall power	8kw
M/C size	1500×2000×2100mm(L×W×H)	Power supply	380V/50Hz

Features
1、Digitally-displayed gage unit program-controlled electronic operation.
2、Stable and accurate measurement self-controlled constant stuff temperature.
3、Originative construction on bucket, step less-regulation stir.
4、Novel design on nose, precise fine-turning flow inversing structure.
5、The machine designed with X-Y axial square revolving working table which can not only pour square seal pack, but also round and special seal pack.
Applications
It is mainly used to pour PU for auto air filter and industry filter.
