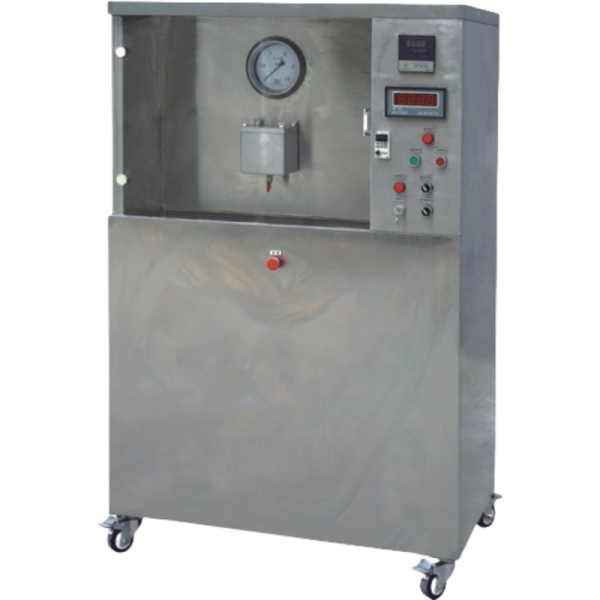

The performance of the bypass valve test bench CHPT-II
Specification
| Specification | |||
| Test flow | 0~25L/min | Temperature control | normal temp.~100℃ |
| Oil pump flow | 40L/min | Motor power | 0.75KW |
| M/C weight | 300kg | power supply | 220V/50Hz |
| M/C size | 1000×600×1560mm(L×W×H) | Warranty | 1 Year |
Features
1、The bypass circuit and double step less speed regulation system to regulate the flow and pressure test.
2、using high precision turbine flow meter to measure flow rate.
3、Using precision pressure gauge to measure pressure.
4、Test criterion:SAE HS806,ISO4548.
