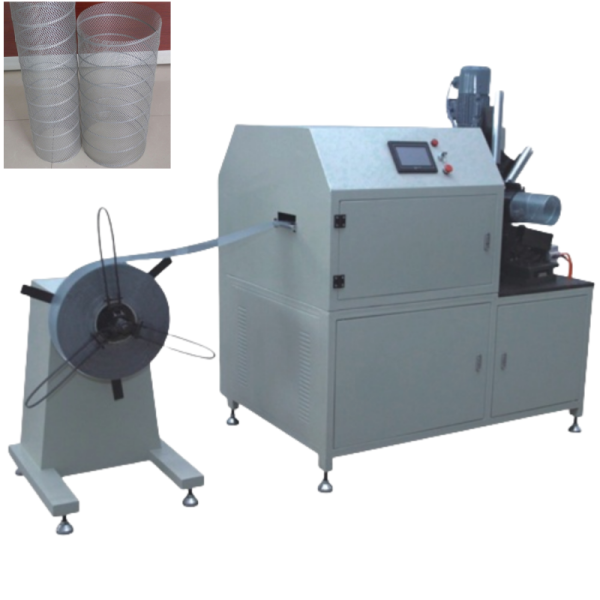

Full automatic air filter diamond mesh spiral pipe center crimping machine CHJY109-500
| Specification | |||
| Diamond mesh width | 109mm | The thickness of the steel plate rolling | :0.25-0.4mm |
| Product capacity | 10-20pcs/min | motor Power | 2.2kW |
| Roll diameter | Ф80-Ф500mm | Power supply | 380v/50hz |
| M/C weight | 550kg | Working air pressure | 0.6mpa |
| M/C size | 1500×1180×2000mm(L×W×H) | The size of the machine | 740×700×1100mm(L×W×H) |
Features
1、This machine can conveniently,quickly changing the diameter of the spiral tube.
2、According to user needs required for cutting length.
3、Suitable for different thickness of the material.
4、Using computer control,the production efficiency is high,stable quality,reduce the process,the materials used,can reduce the production cost.
