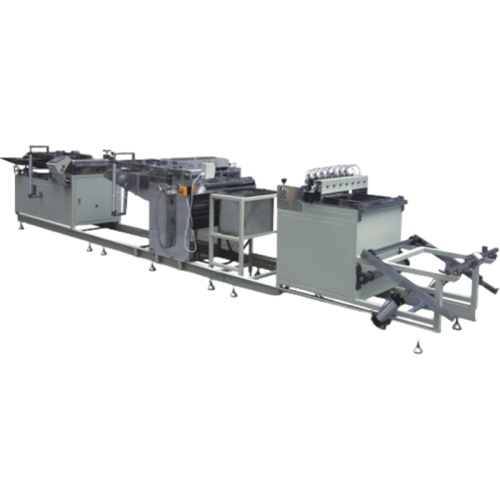

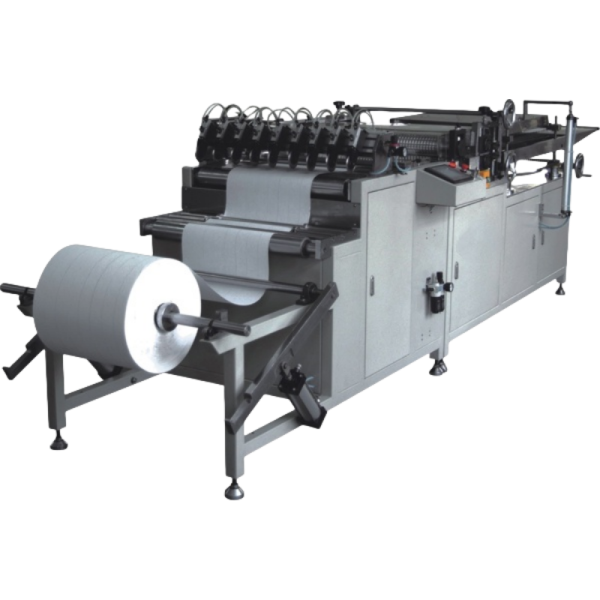

Full-auto Turntable Hot Melt Clipping Machine CHGT-600N

Full-auto Turntable Hot Melt Clipping Machine CHGT-600N

Consists
1、Auto paper de-coiler
2、Paper Pre-slitting machine
3、Pre-heating device before pleating
4、Auto counter
5、Water steam device
6、Rollers marking machine
7、Roller and gear collecting device
8、Pleated paper heat forming and conveyer device
Specification

Specification
Product capability	0~35m/min	Max.pleat height	350mm
Max.width	600mm	Min.pleat height	10mm
Min.width	30mm	Temp.control	normal temp.~300oC
Rollers sizes	Customized	Main power	12kw
M/C weight	750kg	Working air pressure	0.6MPa
M/C dimension	4135×1190×1170mm(L×W×H)	Power supply	380V/50Hz

Features
1、The pre-slitter uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.
2、This machine equips the pre-heating and water steam device, to prevent the paper breaking when roller marking.
3、This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.
4、 The rollers can be made with bubbled type or the pleat-lock type, which is used to maintenance the certain distance between two pleats.
5、This high automatic machine has the process of the process of the auto count marking,pleating, pre-heating and forming.
6、This machine is computer control and simple operation.
 Applications
This machine is used for pleating and forming the HDAF filter element.
