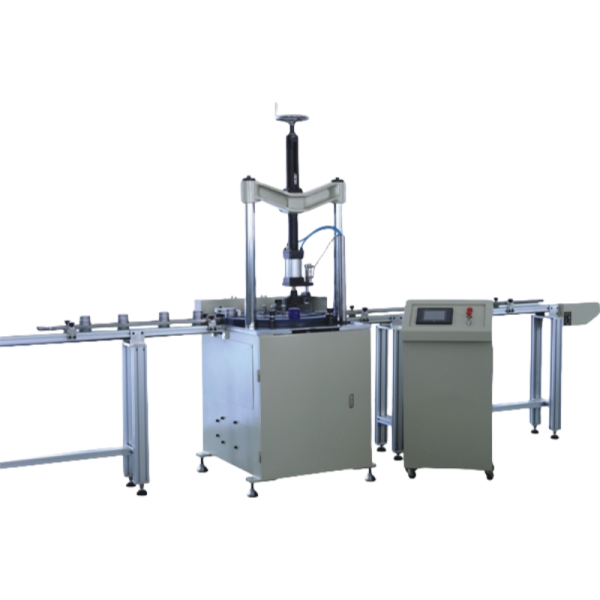

Full-auto High Speed Turntable Seaming Production Line CHFJ-110

Full-auto High Speed Turntable Seaming Production Line CHFJ-110

Specification

Specification
Product capacity	35-45 cans/min	steel thickness range	0.5-0.8mm
Seaming diameter	Φ56- Φ110mm	turntable deciles	12
filter assemble height	50-270mm	motor power	5 KW
Weight	600kg	working air pressure	0.6Mpa
M/C size	700mm×985mm×2060mm( L*W*H) 5050mm×340mm×1415mm( L*W*H) 2050mm×250mm×925mm( L*W*H) 500mm×320mm×1085mm( L*W*H)	power supply	380V/ 50HZ
conveyor belt length	left 3000mm right 2000mm	weight	600kg

 Features

1.Electric and pneumatic controls are used by the seaming machine. The feed movements are carried out for the first roller and second roller by two sets of cam mechanics.
2.Loading and unloading of the processing port will be done by the pneumatic parts that are controlled by the pre-determined program.
3.The sealing wheel uses cr12mov of high as- quenched hardness and fine wear resistance to lengthen the service life.
4.This machine adopts the high precise import divider to ensure the seaming quality.
5.This is high speed seaming machine, has the completely automatically circulation of the up-loading, seaming and down-loading.
Applications
This machine is mainly used for seaming the shells of the spin-on oil& fuel filters.
