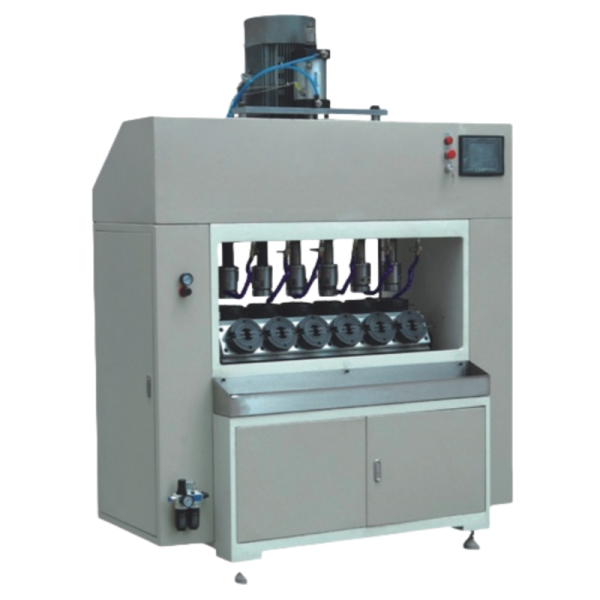

Full-auto Turntable Six-station Tapping Machine CHAS-6

Full-auto Turntable Six-station Tapping Machine CHAS-6

Specification

Specification
product capacity	24pcs/min	Tap fixed ID	Φ23mm
Tapping scope	M16~M38(metric),3/4″~3/2″(inch)	Motor power	5.8KW
Work piece onput number/time	diameter≤M24 6pcs/time；M26~M30　4pcs/time;  ≥M30,3/2″　2pcs/time;	Cooling pump power	120W
Work piece scope	Φ60mm~Φ130mm	Working air pressure	0.6MPa
M/C weight	1200kg	Power supply	380V/50Hz
M/C size	1560×710×2050mm(L×W×H)	Warranty	1 Year

 Features
1、All spare parts are precisely made, to ensure the work piece vertical to the screw tap.
2、The tapping parts set the spray cooling system to keep the work piece smooth and the tap durable.
3、 This machine work automatically, The main axis tapping in counter clockwise, and rapid turning back after finished tapping, then turning oppositely, the chained convey, fix the work piece and travel control all work automatically.
4、This high efficiency machine can tap six work pieces each time.
5、This clever machine is computerized by PLC control, and simple to operate.
Applications
It is mainly used for tapping the bottom plate of oil and fuel filters.
