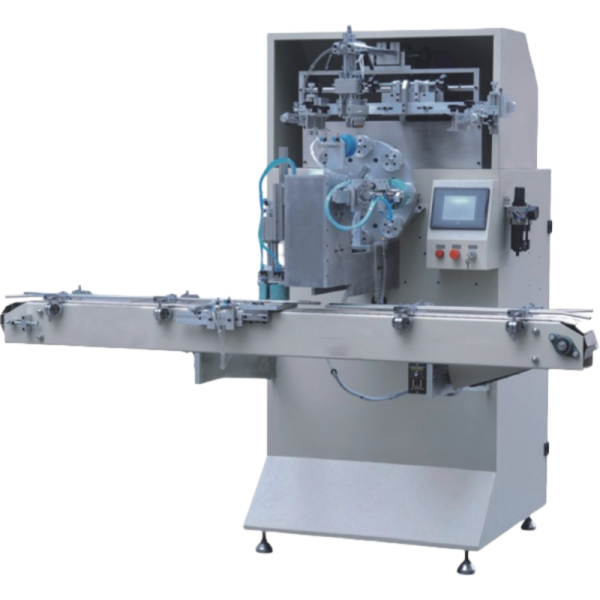

Full-auto Turntable Silk Printing Machin CHAS-110

Full-auto Turntable Silk Printing Machin CHAS-110

I .Specification

Specification
Filter diameter range	Φ55- Φ110mm	Working air pressure	0.6Mpa
Printing speed	35-45 pics/min	Main motor power	0.75Kw
Filter height	60mm-150mm	Conveyor motor power	120W
M/C weight	500kg	Power supply	380V/50HZ
M/C size	2100*1500* 1915mm（L*W*H）	Warranty	1 Year

II. Features
1.This machine adopts the cams composite structure, which is running stable and precisely location.
2.This full automatic silk printing machine has the automatic circulation of up-loading, printing and down-loading by arm robot.
3.This is monitor controlled and simple operation.
III .Applications
This high speed silk screen printer is used for printing on the shells of the spin-on filters.
