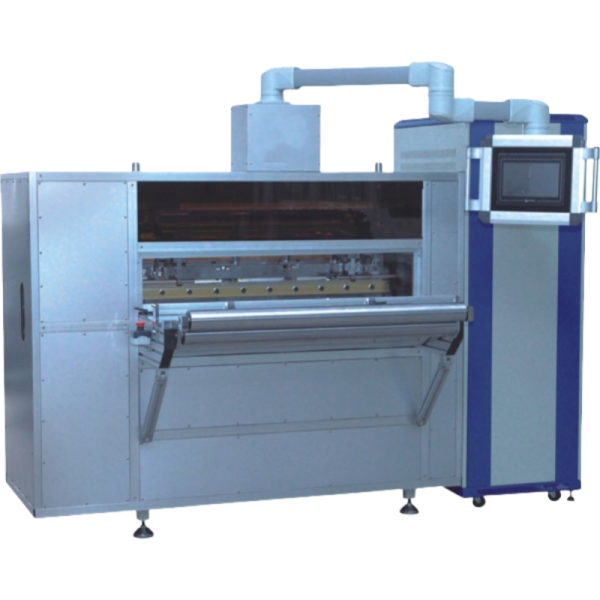

Automatic knife folding machine CH-AUTO55-1050F
| Specification | |||
| Max width | 1050mm | Power supply | 380v/50hz |
| Adjustable pleating height | 4-58mm | Motor power | 4kw |
| Pleating speed | 0-200pairs/min | Preheating power | 4KW |
| M/C weight | 700kg | Heating temp | normal-300℃ |
| M/C size | 2600×1800×1800mm(L×W×H) | Working Air Pressure | 0.6Mpa |
Features
1、The folding machine adopts upper and lower knife alternatively perform folding,from the knife automatic adjustment by computer,can reach different fold higher requirements,accurate size,as smooth as a.
2、In the paper folding machine automatic dotting counter,folding processing and preheating and forming etc..
3、This machine can also be folded all the different rules of fold change.
4、Folding knife of this machine can change any angle,ensure the folding does not damage any kind of filter material.
Applications
This production line is suitable for the automobile industry three,hydraulic industry,purification industry,the water treatment industry.
